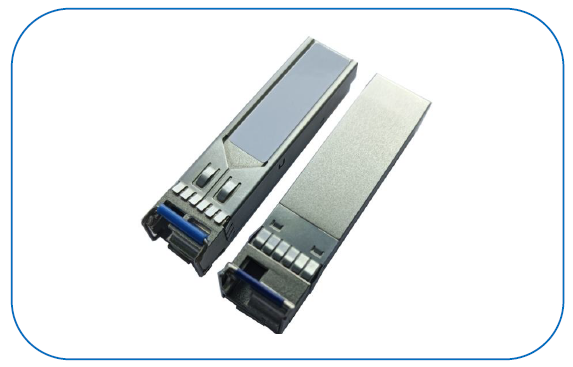

[ NTR-861XLI-CWDM ] 1.25G SFP BIDI CWDM Transceiver Module

1. Product Description

NTR-861XLI-CWDM series of transceiver modules are the perfect solution for high - speed communication networks.

These transceiver modules support data rates up to 1.5Gbps.

The module is fully compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA).

These transceiver modules provides the system designer with Telecom, Datacom, and other Fibre Channel applications.

2. Product Features

  - 1310 and 1550 CWDM Laser Diode Transmitter

  - Up to 20 Km on 9/125μm SMF

  - 3.3V power supply

  - LC single optical interface

  - CML Differential Input /Output and LVTTL signal detect

  - Class 1 Laser International Safety Standard IEC825 Compliant

  - Operating case temperature range (Standard：0 to +70℃) or (Extended： -20°C to +85°C)

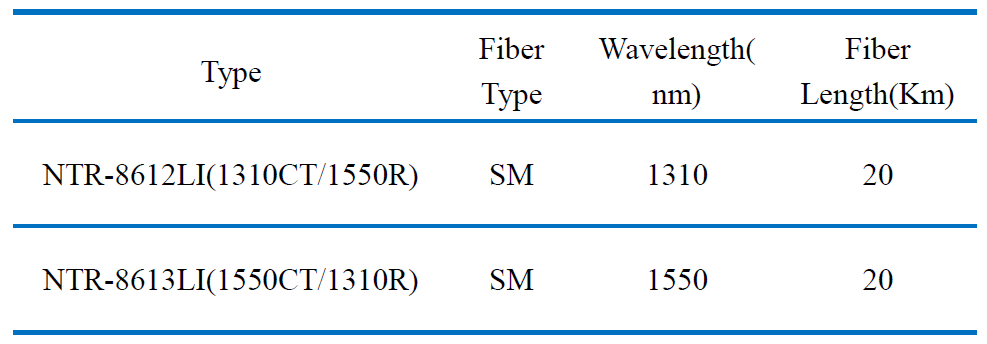

3. Order Information

Note：

1.The suffix "-I" denote the extended level.

2.The suffix "-L" denote the optical interface is LC connector on the left.
