광모듈

현재 당사가 공급하는 NETON의 광모듈은 다년간의 기술 축적으로 개발되어, TUV, ISO9001: 2008 등 여러 인증을 받아서 고품질과 높은 기술력으로 명성이 높으며,
안정된 품질로 국내외 고객들에게 꾸준히 사랑받고 있는 제품입니다.

NETON의 광모듈은 보안, 전력, 철도 운송 및 네트워크 통신과 같은 다양한 산업 분야에 공급되고 있으며, 또한 고객의 높은 요구 사항에 맞춰져 있습니다. 항상 우수한 성능과 최고의 가성비로 고객에게 양질의 서비스를 제공하고 있습니다.

• Transceiver in Smart Grid 1300nm MMF



  제품특징

  • Low power consumption
  • Wide temperature range
  • P/N : 1312TZ , 2316TZ
  • Type : TX , RX
  • Speed : 155MBd
  • Wavelength : 1300nm

  ※ 상세 스펙은 상단에 "카탈로그 다운로드" 클릭!

• Transceiver in Smart Grid 850nm MMF



  제품특징

  • Low power consumption
  • Wide temperature range
  • P/N : 1412TZ , 1414TZ , 2412TZ , 2418TZ
  • Type : TX , RX
  • Speed : DC-5MBd , DC-50MBd
  • Wavelength : 850nm

  ※ 상세 스펙은 상단에 "카탈로그 다운로드" 클릭!

• 10G SFP+ 광모듈



  제품특징

  • 10Gb/s serial optical interface compliant to 802.3ae 1OGBASE-LR, single
  • LC connector for bi-directional application, over 20km SMF
  • Compliant with SFP+ MSA
  • Simplex LC Connector
  • 1270 nm DFB LD Transmitter, 1330 nm Receiver
  • 1330 nm DFB LD Transmitter, 1270 nm Receiver
  • AC/AC Coupling according to MSA
  • Single +3.3 V Power Supply
  • Operating Case Temperature Range O℃∼ +70 ℃
  • RoHS Compliant

  ※ 상세 스펙은 상단에 "카탈로그 다운로드" 클릭!

• 6G SFP+ 광모듈



  제품특징

  • Up to 6 Gb/s Data Links
  • Compliant with SFP+ MSA
  • Simplex LC Connector
  • 1310 nm FP LD Transmitter, 1550 nm Receiver
  • 1550 nm FP LD or DFB Transmitter, 1310 nm Receiver
  • 1270 nm DFB LD Transmitter, 1330 nm Receiver
  • 1330 nm DFB LD Transmitter, 1270 nm Receiver
  • AC/AC Coupling according to MSA
  • Digital diagnostic SFF-8472 compliant
  • Distance up to 0.5 km 2km 20km at SM Fiber
  • Single +3.3 V Power Supply
  • Operating case temperature range O℃ ~ +70 ℃
  • RoHS Compliant

  ※ 상세 스펙은 상단에 "카탈로그 다운로드" 클릭!

• HD/SD-SDI 1.5Gbps/155Mbps Bi-Di Asymmetry 광모듈



  제품특징

  • SMPTE 297-2006 Compatible
  • 1-Fiber 1×9 Optical Transceiver
  • Support Video Pathological Patterns for SD-SDI, HD-SDI
  • Simplex SC/FC/ST Connector
  • Single +3.3 V Power Supply
  • RoHS-6 Compliant
  • Operating Case Temperature Range O℃ ∼+70 ℃
  • Class 1 Laser International Safety Standard IEC-60825 Compliant

  ※ 상세 스펙은 상단에 "카탈로그 다운로드" 클릭!

• HD/SD-SDI SFP 광모듈



  제품특징

  • SMPTE 297-2006 Compatible
  • 1-Fiber Bi-Directional SFP Optical Transceiver
  • Speed from 155 Mbps to 3Gbps with up to 60 km Single-mode Fiber
  • Support Video Pathological Patterns for SD-SDl,HD-SDI and 3G-SDI
  • Simplex LC Connector
  • Single +3.3 V Power Supply
  • RoHS-6 Compliant
  • Operating Case Temperature Range O℃∼+70 ℃
  • Compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA) and SFF-8472 v9.3

  ※ 상세 스펙은 상단에 "카탈로그 다운로드" 클릭!

• 155Mbps DDM SFP MM 광모듈 (LPD)



  제품특징

  • 1310nm FP Laser Transmitter
  • Up to 2 Km with 62.5/125m MMF
  • Single 3.3V power supply
  • Operating case Temperature range -40℃ to +85℃
  • Hot-Pluggable electrical interface
  • Digital diagnostic monitoring
  • LC duplex receptacle
  • Low power dissipation
  • Excellent EMI and ESD protection
  • Compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA) and SFF-8472 v9.3

  ※ 상세 스펙은 상단에 "카탈로그 다운로드" 클릭!

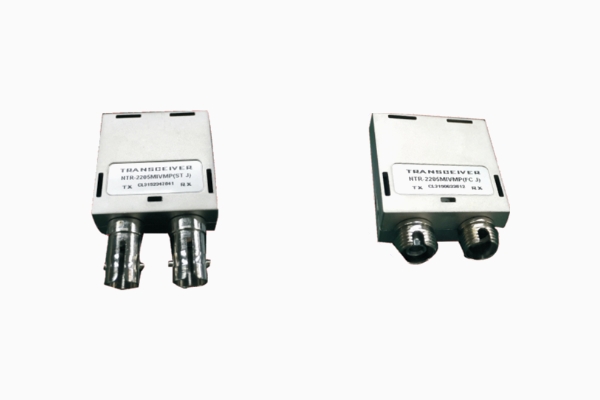

• 155Mbps 1×9 MM 광모듈 (Electroplating)



  제품특징

  • Multi-sourced 1 × 9 pin packaged
  • 1310nm FP Laser Transmitter
  • FC/ST double receptacle
  • Metal case
  • Excellent EMI and ESD protection
  • Up to 5Km with 62.5/125m MMF
  • Single 3.3V power supply
  • LVPECL signal input and output
  • Wave solderable and washable with process plug inserted
  • Operating Case Temperature range -40℃ to +85℃

  ※ 상세 스펙은 상단에 "카탈로그 다운로드" 클릭!

• 1×9 SM 시리즈 모듈



  제품특징

  • Multi-sourced 1×9 pin packaged
  • 1310nm FP /DFB or 1550nm FP /DFB Laser Transmitter
  • SC /FC/ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
  • Up to 120Km with 9/125um SMF
  • Single 3.3V, 5V, power supply
  • PECL or TTL signal input and output
  • Wave solderable and washable with process plug inserted
  • Two temperature ranges: 0℃ to +70℃ , -40℃ to +85℃ for industry level

  ※ 상세 스펙은 상단에 "카탈로그 다운로드" 클릭!

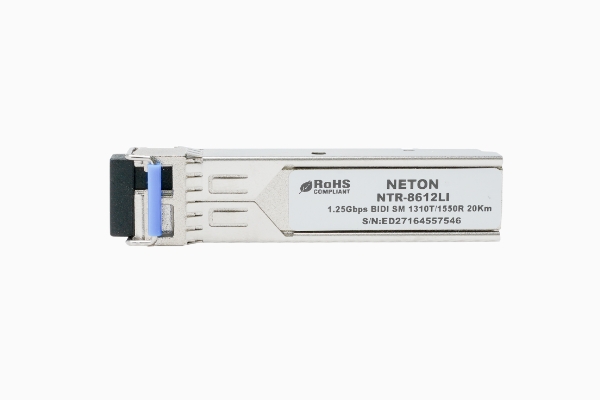

• SFP SM DDM 시리즈 모듈



  제품특징

  • 1310nm FP/DFB or 1550nm FP/DFB Laser Transmitter
  • Hot-Pluggable electrical interface
  • Digital diagnostic monitoring Sc/Lc Single or Lcdaplex Recepracle
  • Low power dissipation
  • Excellent EMI and ESD protection
  • Compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA) and SFF-8472 v9.3
  • Two temperature ranges: 0℃ to +70℃ , -40℃ to +85

  ※ 상세 스펙은 상단에 "카탈로그 다운로드" 클릭!

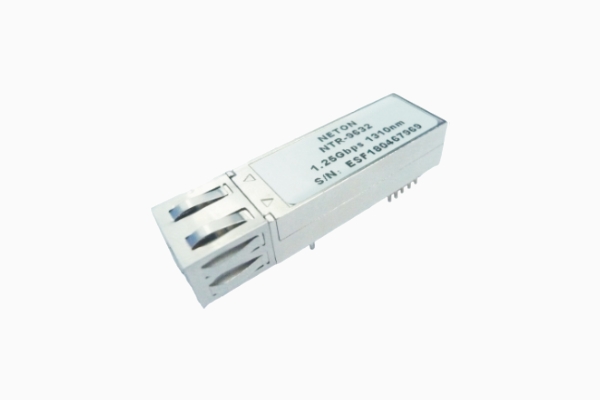

• 2×5/2×10 SFF 광모듈



  제품특징

  • 1310nm or 1550 wavelength Laser Transmitter
  • Single 3.3V power supply
  • Standard 2×5 pin or 2×1O footprint (MSA Compliant)
  • Operating Case Temperature range: 0℃ to +70℃, -40℃ to +85℃
  • Duplex LC connector
  • Low power dissipation
  • Excellent EMI and ESD protection
  • Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)

  ※ 상세 스펙은 상단에 "카탈로그 다운로드" 클릭!

• CWDM SFP DDM 광모듈



  제품특징

  • Transceiver unit with independent CWDM DFB Laser diode transmitter
  • Up to 120 Km with 9/125um SMF
  • +3.3V single power supply
  • Operating Temperature Range (0℃ to +70℃)
  • Hot-Pluggable electrical interface
  • Digital diagnostic monitoring
  • LC duplex receptacle
  • Low power dissipation
  • Excellent EMI and ESD protection
  • Compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA) and SFF-8472 v9.3

  ※ 상세 스펙은 상단에 "카탈로그 다운로드" 클릭!
