[ 12D1M 시리즈 ] 1W 6KV 절연 SIP 의료용 DC-DC 컨버터

1. 특징

  - 7PIN SIP package.

  - High efficiency up to 81%.

  - Reinforced insulation.

  - The patient leakage current: Max 2μA.

  - Unregulated output types.

  - Internal SMD construction.

  - Industry standard pinout.

  - Operating temperature:-40°C to +85°C.

  - Design refer to EN60601-1, ANSI/AAMI ES60601-1.

2. 애플리케이션

  - Industry equipment.

  - Sensing equipment.

  - Instruments.

  - Wireless Network.

  - Telecom/Datacom.

  - Measurement.

  - Aviation.

  - Medical device.

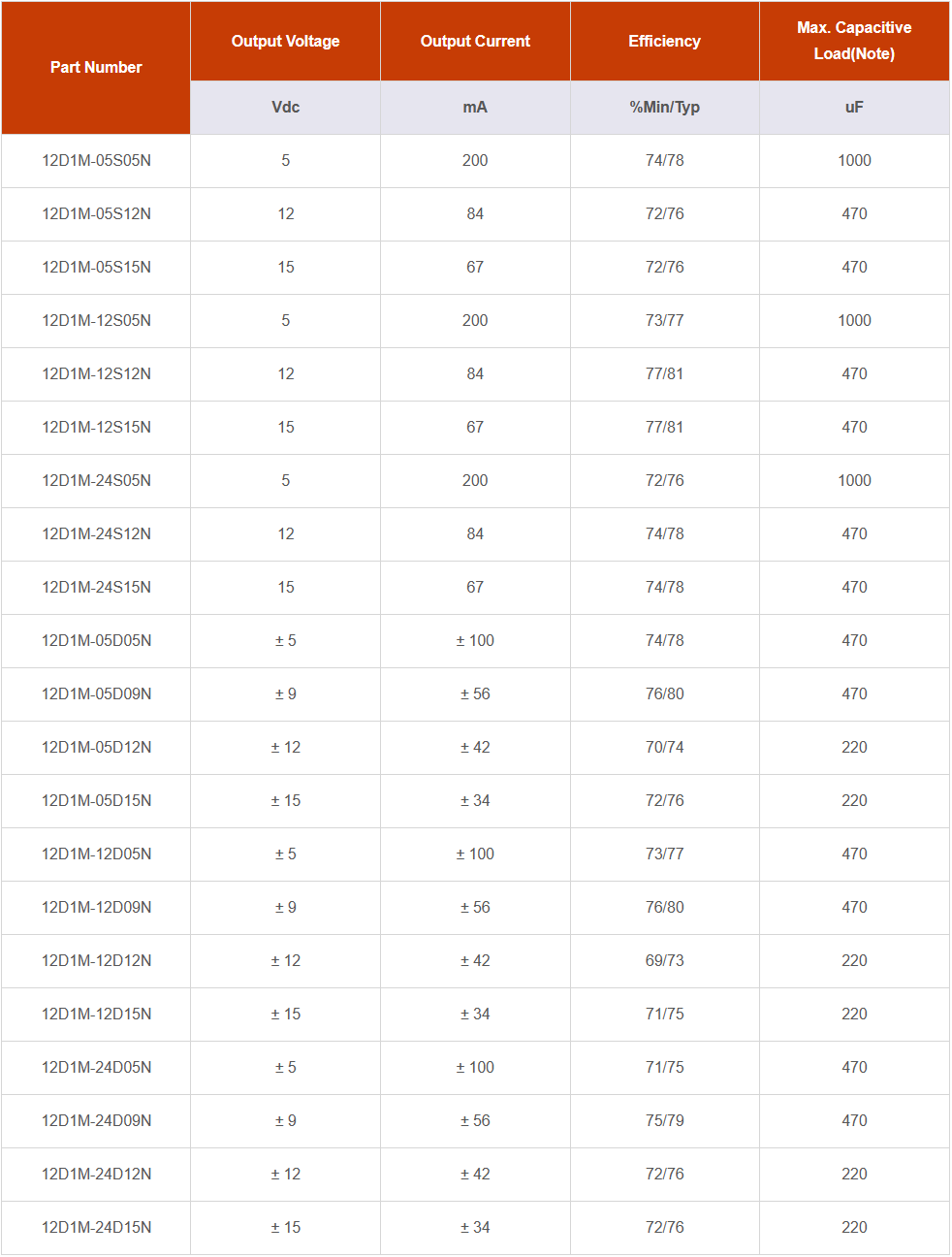

TA = 25°C, 명목 입력 전압 및 정격 출력 전류일 경우 일반적인 사양, 그렇지 않은 경우 별도로 지정된 사양

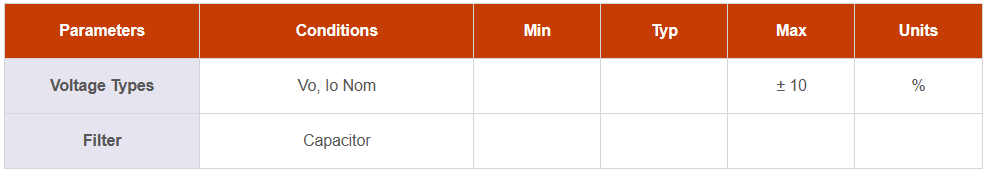

◈ 입력 사양

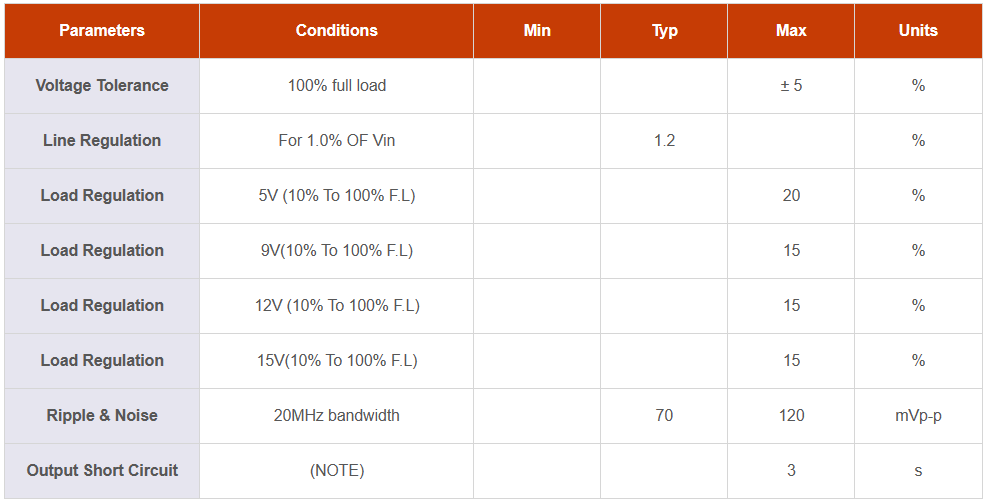

◈ 출력 사양

Note:

Supply voltage must be discontinued at the end of short circuit duration which less than 3s.

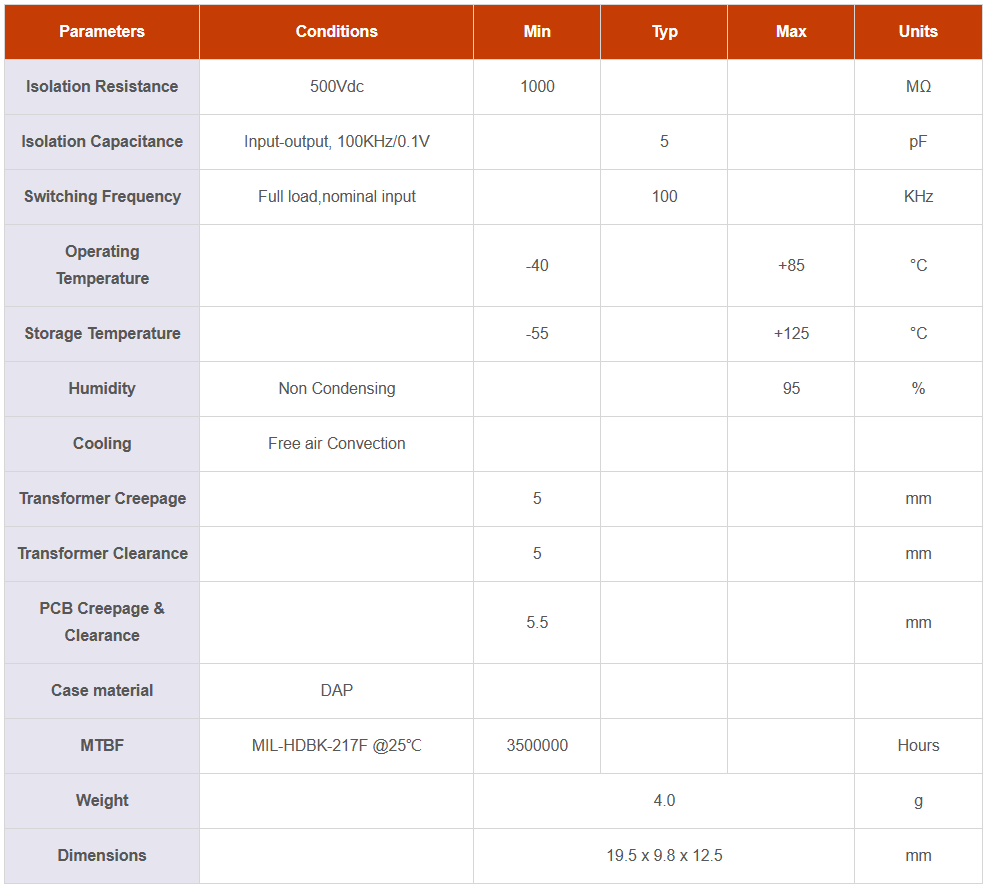

◈ 일반 사양

◈ 인증

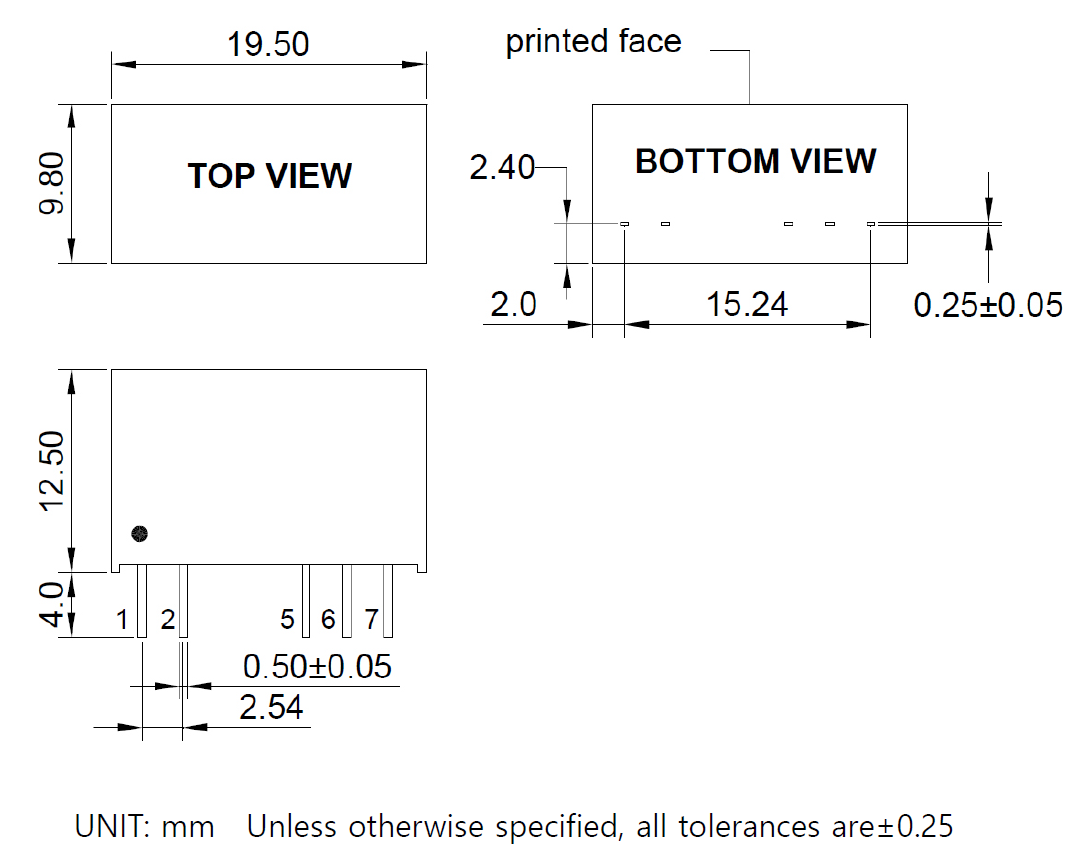

◈ 표시 및 치수
